Python and the Financial Industry¶

A Subjective and Biased Overview

Dr. Yves J. Hilpisch | The Python Quants GmbH

analytics@pythonquants.com | www.quant-platform.com

Pycon Ireland, 11. October 2014

The Python Language¶

Black-Scholes-Merton (1973) SDE of geometric Brownian motion.

$$ dS_t = rS_tdt + \sigma S_t dZ_t $$

Monte Carlo simulation: draw $I$ standard normally distributed random number $z_t^i$ and apply them to the following by Euler disctretization scheme to simulate $I$ end values of the GBM:

$$ S_{T} = S_0 \exp \left(\left( r - \frac{1}{2} \sigma^2\right) T + \sigma \sqrt{T} z_T \right) $$

Latex description of Euler discretization.

S_T = S_0 \exp (( r - 0.5 \sigma^2 ) T + \sigma \sqrt{T} z_T)

Python implementation of algorithm.

In [1]:

from pylab import *
S_0 = 100.; r = 0.01; T = 0.5; sigma = 0.2
z_T = standard_normal(10000)

In [2]:

S_T = S_0 * exp((r - 0.5 * sigma ** 2) * T + sigma * sqrt(T) * z_T)

Again, Latex for comparison:

S_T = S_0 \exp (( r - 0.5 \sigma^2 ) T + \sigma \sqrt{T} z_T)

Interactive visualization of simulation results.

In [3]:

%matplotlib inline
pyfig = figure()
hist(S_T, bins=40);
grid()

The Python Ecosystem¶

IPython (Notebook)
NumPy (fast, vectorized array operations)
SciPy (collection of scientific classes/functions)
pandas (times series and tabular data)
PyTables (hardware-bound IO operations)
scikit-learn (machine learning algorithms)
statsmodels (statistical classes/functions)
xlwings (Python-Excel integration)

Financial Libraries¶

By others:

zipline (backtesting of trading algos)
matplotlib.finance (financial plots)
Python wrappers (QuantLib)

By us:

DEXISION – GUI-based financial engineering
DX Analytics – global valuation of multi-risk derivatives and portfolios

Example: DX Analytics¶

DX Analytics is a Python library for advanced financial and derivatives analytics written by The Python Quants. It is particularly suited to model multi-risk derivatives and to do a consistent valuation of portfolios of complex derivatives. It mainly uses Monte Carlo simulation since it is the only numerical method capable of valuing and risk managing complex, multi-risk derivatives books.

An example with an European maximum call option on two underlyings.

In [4]:

%%time
import dx
%run dx_example.py
  # sets up market environments
  # and defines derivative instrument
  # calculates a number of numerical results

CPU times: user 4.9 s, sys: 335 ms, total: 5.24 s
Wall time: 5.26 s

In [5]:

max_call.payoff_func
  # payoff of a maximum call option
  # on two underlyings (European exercise)

Out[5]:

"np.maximum(np.maximum(maturity_value['gbm'], maturity_value['jd']) - 34., 0)"

In [6]:

max_call.vega('jd')
  # numerical Vega with respect
  # to one risk factor

Out[6]:

4.194600000000115

A Vega surface for one risk factor with respect to the initial values of both risk factors.

In [7]:

dx.plot_greeks_3d([a_1, a_2, vega_gbm], ['gbm', 'jd', 'vega gbm'])
  # Vega surface plot

APIs – Interfacing with Others

OANDA (fx trading platform)
Thomson Reuters (wrapper for unified API in the making)
Front Arena (scripting with Python)
Murex (scripting payoffs with Python)
...

Example: Murex¶

From http://www.risk.net:

"Murex provides a complete cross-asset and front-to-back offering for structured products, combining out-of-the box complex payoffs and models with structuring tools, and model and products catalogue extensors.

Key features include:

A wide native catalogue of exotic products and best-of-breed models, all compliant with a grid.
A generic Monte Carlo, fully compliant with graphics processing units, providing impressive performance speed-ups.
A structured trade builder to create any on-the-fly packages, persistent contracts and structured over-the-counter trades or securities – for example, warrants and bonds.
A payoff language to describe any complex exotic with an interpreted language (Python) in an unbeatable time to market, and for both revaluation and front-to-back integration."

Integration – No "Either Or" with Python

C/C++ (natively)
Julia (IPython)
JavaScript (IPython)
R (IPython/rpy2)
Matlab (NumPy)
...

Example: Statistics with R¶

We analyze the statistical correlation between the EURO STOXX 50 stock index and the VSTOXX volatility index.

First the EURO STOXX 50 data.

In [8]:

import pandas as pd
cols = ['Date', 'SX5P', 'SX5E', 'SXXP', 'SXXE',
        'SXXF', 'SXXA', 'DK5F', 'DKXF', 'DEL']
es_url = 'http://www.stoxx.com/download/historical_values/hbrbcpe.txt'
try:
    es = pd.read_csv(es_url,  # filename
                     header=None,  # ignore column names
                     index_col=0,  # index column (dates)
                     parse_dates=True,  # parse these dates
                     dayfirst=True,  # format of dates
                     skiprows=4,  # ignore these rows
                     sep=';',  # data separator
                     names=cols)  # use these column names

    # deleting the helper column
    del es['DEL']
except:
    # read stored data if there is no Internet connection
    es = pd.HDFStore('data/SX5E.h5', 'r')['SX5E']

Second, the VSTOXX data.

In [9]:

vs_url = 'http://www.stoxx.com/download/historical_values/h_vstoxx.txt'

try:
    vs = pd.read_csv(vs_url,  # filename
                     index_col=0,  # index column (dates)
                     parse_dates=True,  # parse date information
                     dayfirst=True, # day before month
                     header=2)  # header/column names
except:
    # read stored data if there is no Internet connection
    vs = pd.HDFStore('data/V2TX.h5', 'r')['V2TX']

Generating log returns with Python and pandas.

In [10]:

import numpy as np
# log returns for the major indices' time series data
datv = pd.DataFrame({'SX5E' : es['SX5E'], 'V2TX': vs['V2TX']}).dropna()
rets = np.log(datv / datv.shift(1)).dropna()
ES = rets['SX5E'].values
VS = rets['V2TX'].values

Bridging to R from within IPython Notebook and pushing Python data to the R run-time.

In [11]:

%load_ext rpy2.ipython

The rpy2.ipython extension is already loaded. To reload it, use:
  %reload_ext rpy2.ipython

In [12]:

%Rpush ES VS

Plotting with R in IPython Notebook.

In [13]:

%R plot(ES, VS, pch=19, col='blue'); grid(); title("Log returns ES50 & VSTOXX")

Linear regression with R.

In [14]:

%R c = coef(lm(VS~ES))

Out[14]:

<FloatVector - Python:0x10b247680 / R:0x10e9135c8>
[-0.000057, -2.756117]

In [15]:

%R print(summary(lm(VS~ES)))


Call:
lm(formula = VS ~ ES)

Residuals:
     Min       1Q   Median       3Q      Max
-0.32413 -0.02192 -0.00215  0.02018  0.53679

Coefficients:
              Estimate Std. Error t value Pr(>|t|)
(Intercept) -5.661e-05  6.160e-04  -0.092    0.927
ES          -2.756e+00  4.073e-02 -67.661   <2e-16 ***
---
Signif. codes:  0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1

Residual standard error: 0.03905 on 4016 degrees of freedom
Multiple R-squared:  0.5327,	Adjusted R-squared:  0.5326
F-statistic:  4578 on 1 and 4016 DF,  p-value: < 2.2e-16

Regression line visualized.

In [16]:

%R plot(ES, VS, pch=19, col='blue'); grid(); abline(c, col='red', lwd=5)

Pulling data from R to Python and using it.

In [17]:

%Rpull c

In [18]:

plt.figure(figsize=(9, 6))
plt.plot(ES, VS, 'b.')
plt.plot(ES, c[0] + c[1] * ES, 'r', lw=3)
plt.grid(); plt.xlabel('ES'); plt.ylabel('VS')

Out[18]:

<matplotlib.text.Text at 0x105ee14d0>

If you want to have it nicer, interactive and embeddable anywhere – use plot.ly

In [19]:

import plotly.plotly as ply
ply.sign_in('yves', 'token')

Let us generate a plot with a bit fewer data points.

In [20]:

pyfig = plt.figure(figsize=(9, 6)); n = 100
plt.plot(ES[:n], VS[:n], 'b.')
plt.plot(ES[:n], c[0] + c[1] * ES[:n], 'r', lw=3)
plt.grid(); plt.xlabel('ES'); plt.ylabel('VS')

Out[20]:

<matplotlib.text.Text at 0x110d83f10>

Only single line of code needed to convert matplotlib plot into interactive D3 plot.

In [21]:

ply.iplot_mpl(pyfig)  # convert mpl plot into interactive D3

Out[21]:

Performance – Numerical Algorithms

Finance algorithms are loop-heavy; Python loops are slow; Python is too slow for finance.

In [22]:

def counting_py(N):
    s = 0
    for i in xrange(N):
        for j in xrange(N):
            s += int(cos(log(1)))
    return s

In [23]:

N = 2000
%time counting_py(N)
# memory efficient but slow

CPU times: user 12.9 s, sys: 222 ms, total: 13.1 s
Wall time: 13.1 s

Out[23]:

First approach: vectorization with NumPy.

In [24]:

%%time
arr = ones((N, N))
print int(sum(cos(log(arr))))

4000000
CPU times: user 75.4 ms, sys: 44.8 ms, total: 120 ms
Wall time: 119 ms

In [25]:

arr.nbytes # much faster but NOT memory efficient

Out[25]:

32000000

Second approach: dynamic compiling with Numba.

In [26]:

import numba
counting_nb = numba.jit(counting_py)

In [27]:

%time counting_nb(N)
# some overhead the first time

CPU times: user 140 ms, sys: 12.8 ms, total: 153 ms
Wall time: 144 ms

Out[27]:

In [28]:

%timeit counting_nb(N)
# even faster AND memory efficient

10 loops, best of 3: 59.2 ms per loop

Performance – Hardware-bound IO

Hardware-bound IO operations are standard for Python.

In [29]:

%time one_gb = standard_normal((12500, 10000))
one_gb.nbytes
# a giga byte worth of data

CPU times: user 5.27 s, sys: 373 ms, total: 5.65 s
Wall time: 5.65 s

Out[29]:

1000000000

In [30]:

%time save('one_gb', one_gb)

CPU times: user 53.5 ms, sys: 1.72 s, total: 1.77 s
Wall time: 2.23 s

In [31]:

!ls -n one_gb*

-rw-r--r--  1 501  20  1000000080 10 Okt 19:11 one_gb.npy

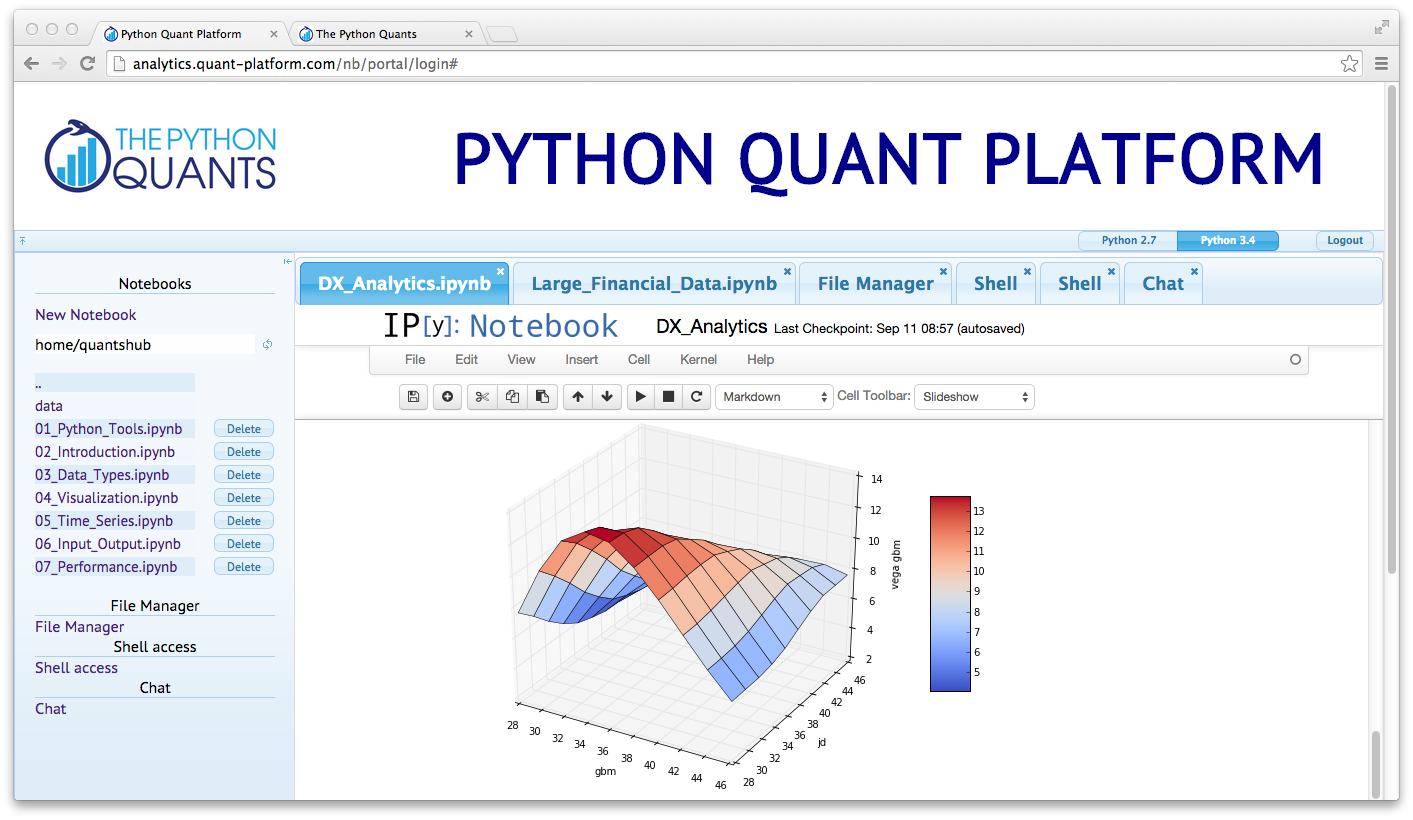

Python Quant Platform¶

Integrating it all and adding collaboration and scalability (http://quant-platform.com).

At the moment, the Python Quant Platform comprises the following components and features:

IPython Notebook: interactive data and financial analytics in the browser with full Python integration and much more (cf. IPython home page).
IPython Shell, Python Shell, System Shell: all you typically do on the (local or remote) system shell (Vim, Git, file operations, etc.)
Anaconda Python Distribution: complete Python stack for financial, scientific and data analytics workflows/applications (cf. Anaconda page); you can easily switch between Python 2.7 and 3.4.
R Stack: for statistical analyses, integrated via rpy2 and IPython Notebook
DX Analytics: our library for advanced financial and derivatives analytics with Python based on Monte Carlo simulation.
File Manager: a GUI-based File Manager to upload, download, copy, remove, rename files on the platform.
Chat/Forum: there is a simple chat/forum application available via which you can share thoughts, documents and more.
Collaboration: the platform features user/group administration as well as file sharing via public folders.
Linux Server: the platform is powered by Linux servers to which you have full shell access.
Deployment: the platform is easily scalable since it is cloud-based and can also be easily deployed on your own servers (via Docker containers).

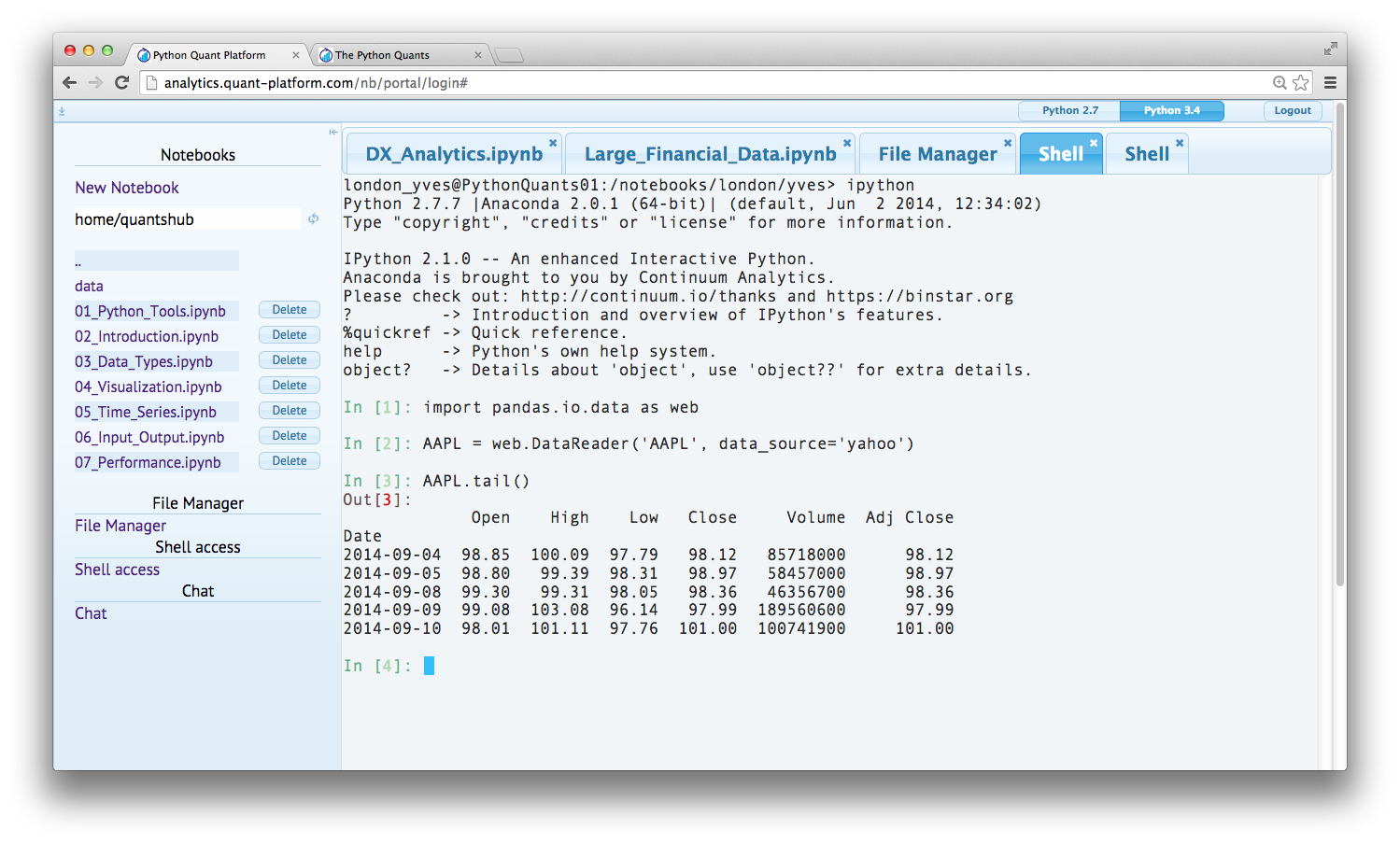

Working on the browser-based shell and using, for instance, IPython.

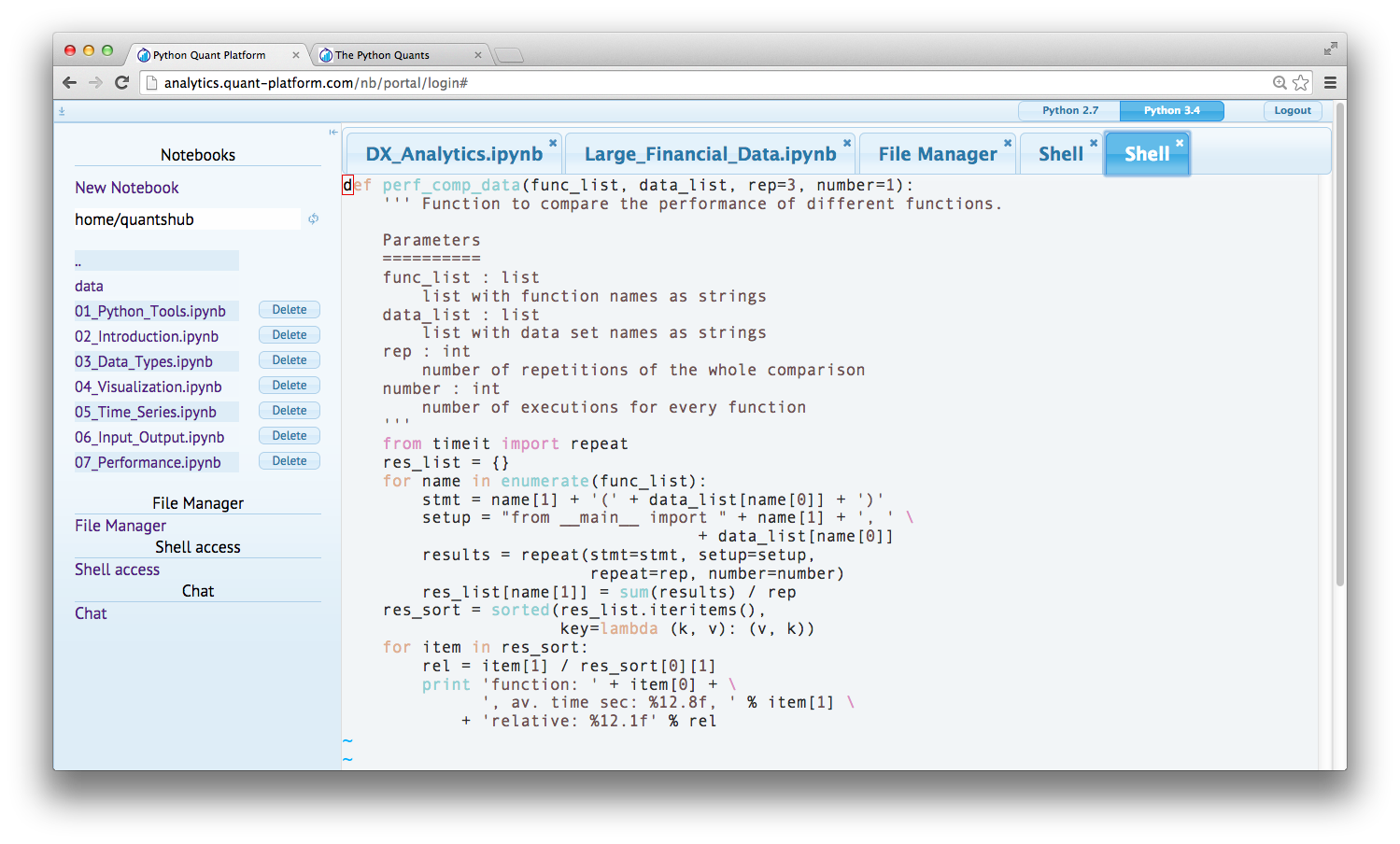

Or doing code editing with Vim, working with Git, etc.

Or checking in on resource usage with htop.

In [33]:

from IPython.display import HTML
HTML('<iframe src=http://analytics.quant-platform.com/trial/yves/ \
      width=100% height=550></iframe>')

Out[33]:

The Large Banks¶

JPMorgan Chase (Athena platform)
Bank of America Merrill Lynch (Quartz platform)
Lloyds Bank
BNP Paribas
Nomura
...

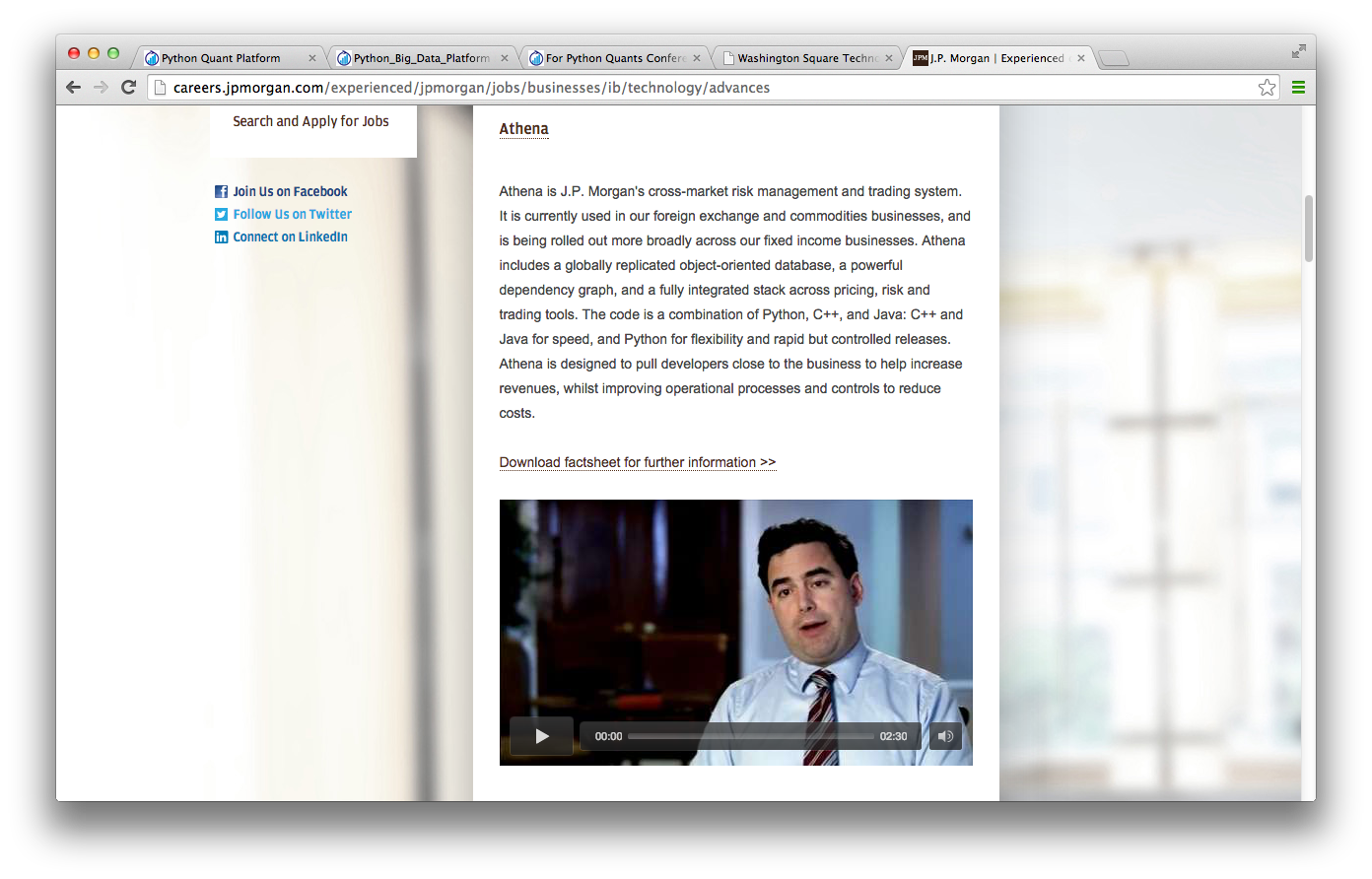

Example: JPMorgan¶

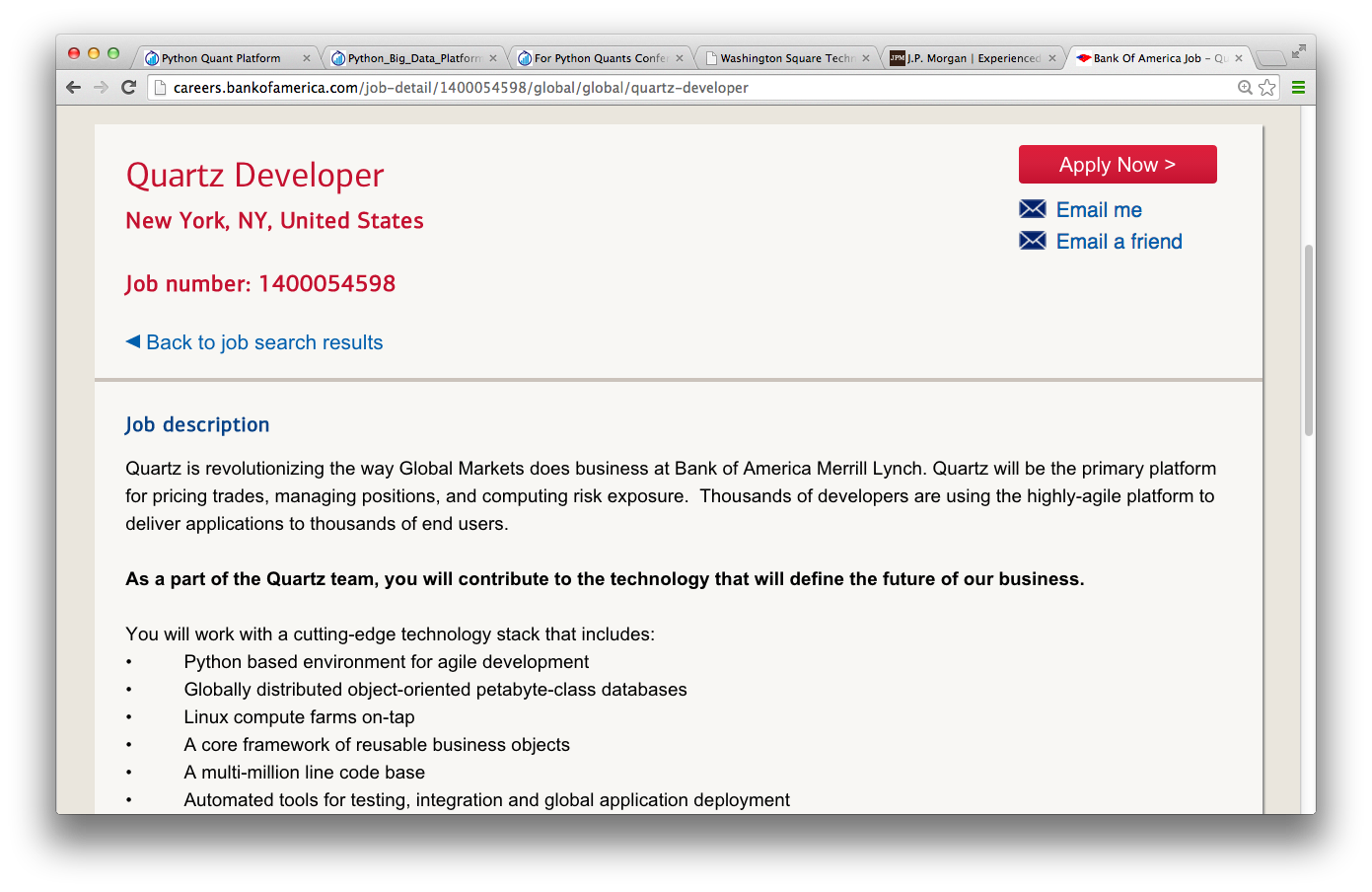

Example: Bank of America Merrill Lynch¶

The Hedge Funds¶

AQR Capital Management (origin of pandas)
Two Sigma Investments (large scale data analytics)
ARC Investments (full-fledged Python for vol trading)
...

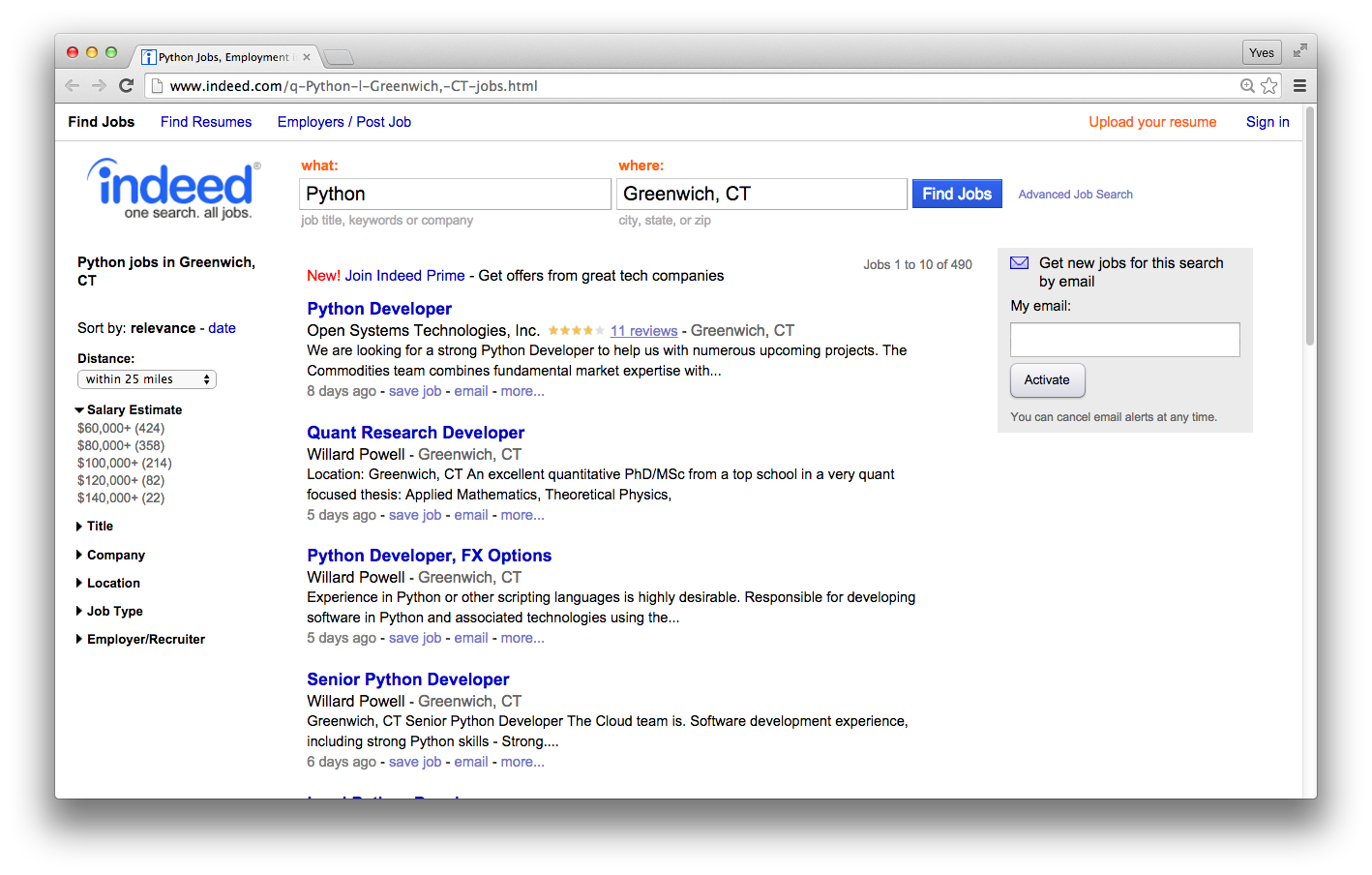

Example: Python Jobs in Greenwich (CT)¶

392 Python Jobs in Greenwich, CT – obviously a famous hedge fund place.

Innovators in the Space¶

Quantopian (algo trading & backtesting)
Washington Square Technologies (trade & risk platform)
Deutsche Boerse/Eurex (VSTOXX and Variance Advanced Services)
...

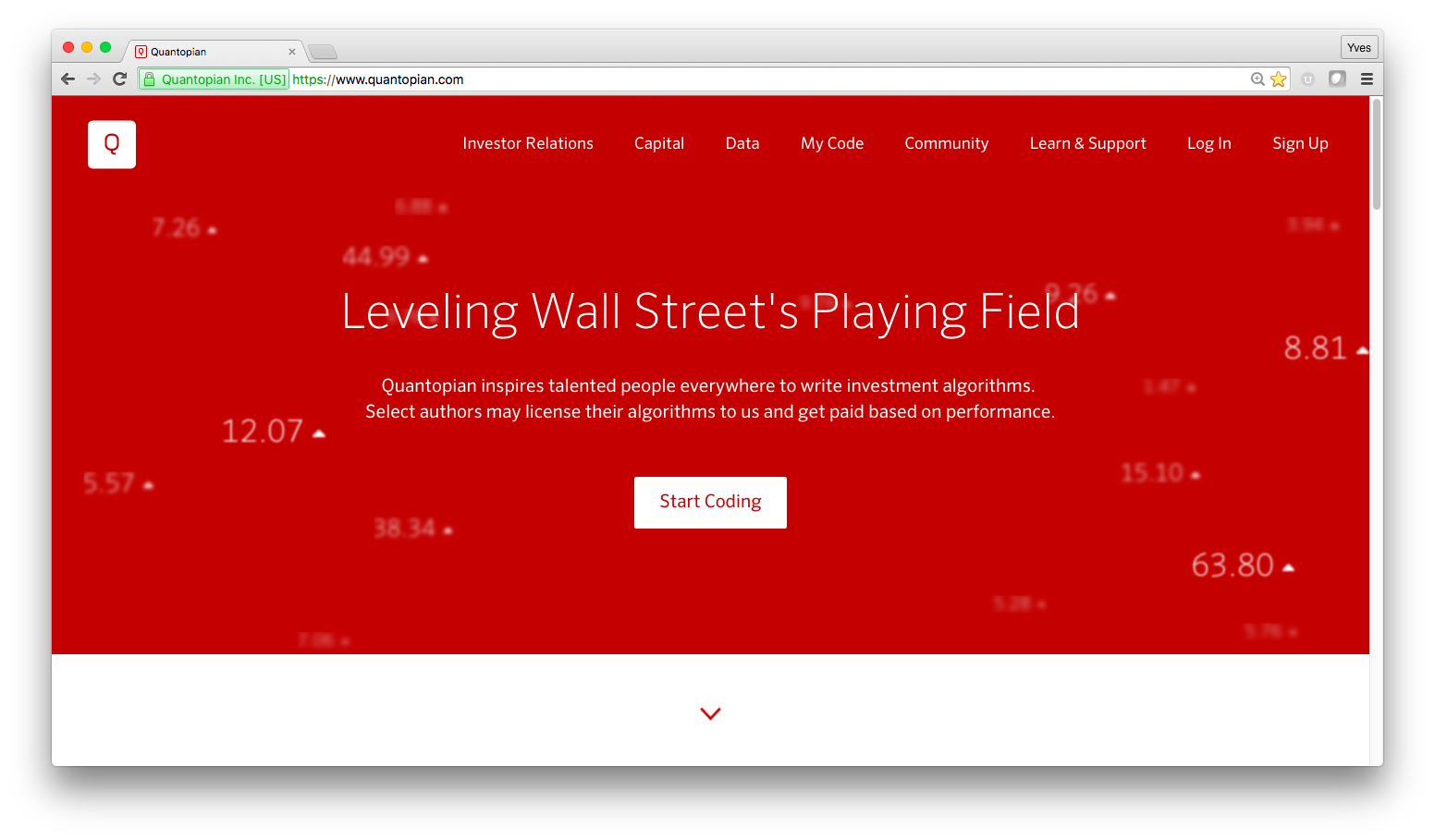

Example: Quantopian¶

Automated Trading powerd by Python.

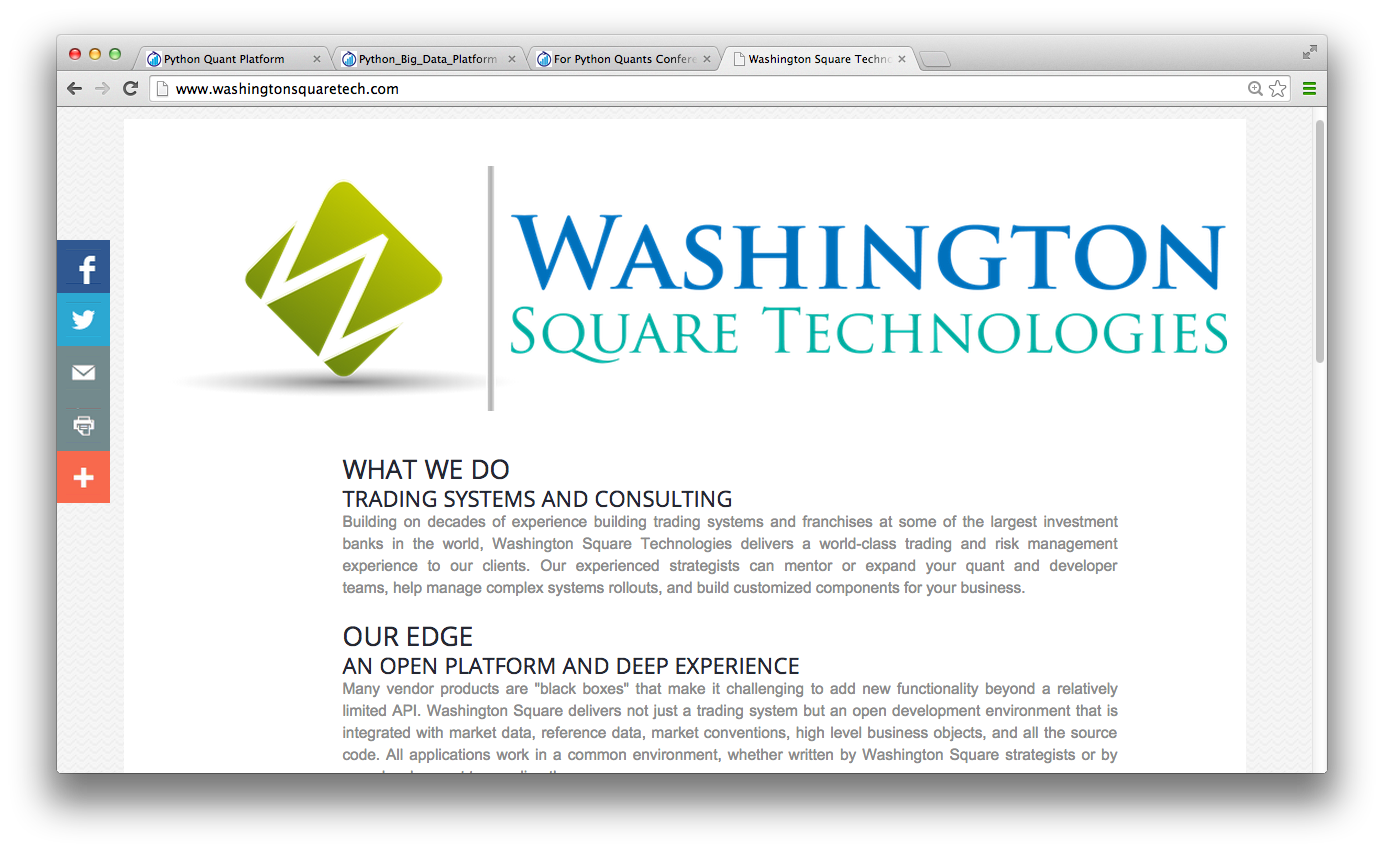

Example: Washington Square Technologies¶

Trading and Risk Management powerd by Python.

Example: Eurex Advanced Services (VSTOXX & Variance Futures)¶

Python-based tutorials by Eurex (http://www.eurexchange.com/vstoxx/).

Books¶

By others:

Python for Financial Modelling @ Wiley Finance (2009)
Python for Finance @ Packt Publishing (2014)

By myself:

Python for Finance – Analyze Big Financial Data @ O'Reilly (2014)
Derivatives Analytics with Python @ Wiley Finance (2015)

Available as ebook and from December 2015 as print version (currently 50% discount – see my Twitter account @dyjh).

Forthcoming 2015 at Wiley Finance ...

Financial Research¶

"The appendices present an implementation in Python of our experiments." (p. 3)

Education¶

Master of Financial Engineering @ Baruch College CUNY
Master of Data Science @ City University of New York
Numerical Option Pricing with Python @ Saarland University
...

Baruch College Web site:

"Knowledge and Skills: Our graduates have working experience with C++, VBA, Python, R, and Matlab for financial applications. They share an exceptionally strong work ethic and possess excellent interpersonal, teamwork, and communication skills."

Training¶

By others:

Python for Finance @ Continuum Analytics
Python for Finance @ Enthought

By myself:

Python for Quant Finance @ Python for Quant Finance Meetup Group
Python for Finance @ http://quantshub.com
NumPy & pandas for Finance @ CQF Institute/Fitch Learnings
...

In [34]:

HTML('<iframe src=http://quantshub.com/content/python-finance-yves-j-hilpisch \
        width=100% height=550></iframe>')

Out[34]:

Meetups¶

For Python Quants Conference¶

1st conference in New York City on 14. March 2014
2nd conference in London on 28. November 2014
3rd conference planned for QI 2015 in Asia (eg Shanghai)

http://quant-platform.com/conf/

In [35]:

HTML('<iframe src="http://quant-platform.com/conf/" \
     width=100% height=650></iframe>')

Out[35]:

Python – MMA of the Technology World

My wish for Python in the future: to become THE glue language and platform for

data analytics
financial analytics
development efforts in general
performance technologies
science and the technology world
...

Python has the potential to accomplish what MMA has done for the Martial Arts.

Contact us¶

Please contact us if you have any questions or want to get involved in our Python community events.

The Python Quants

www.pythonquants.com | @dyjh

analytics@pythonquants.com

Python Quant Platform | http://quant-platform.com

Derivatives Analytics with Python | Derivatives Analytics @ Wiley Finance

Python for Finance | Python for Finance @ O'Reilly
